Description

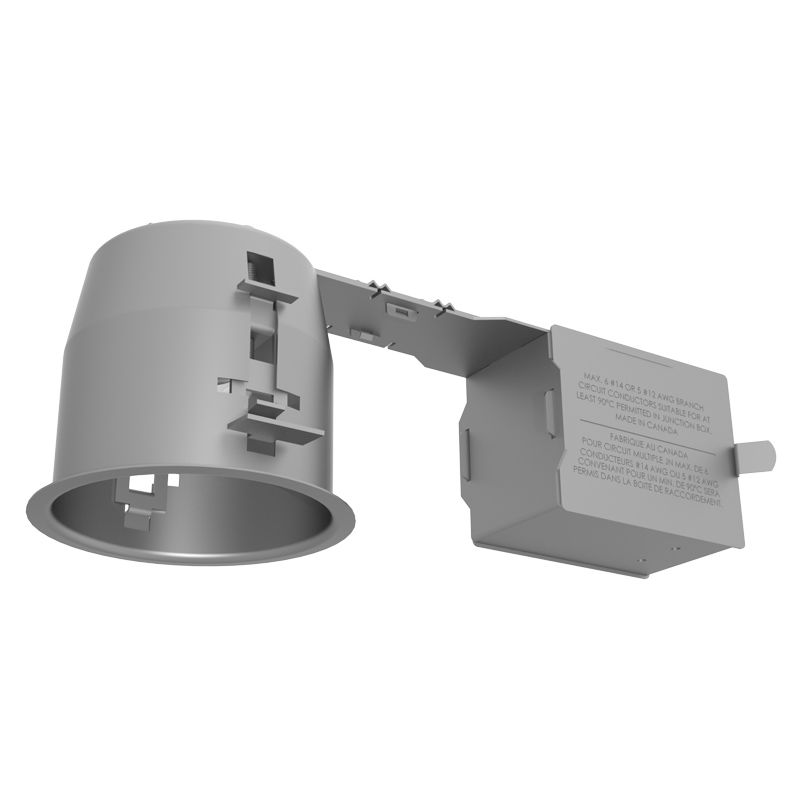

Remodel housing designed for some 3-1/2” trims of the Classic line with PAR20 lamps.
- Below-ceiling accessible
- No light leakage
- Halogen PAR20 50W MAX
- Medium base socket (E26)
- Compatible with 120V input
- Certified cULus for damp locations
- Can fit in ceilings up to 7/8” (22 mm) thick
- A 4” (103 mm) clearance beyond the ceiling level is required to install the housing
- Must be installed 3” (76 mm) from any insulating material
-
Installation Sheet EC130
Modified on 02/10/21
-
Technical Sheet
Modified on 07/10/18
-
Configurator
Options
CA3600U
